Start with a Drawing
Send us a drawing, DXF file, 3D model, or technical specification — we analyze the contour, material, thickness, holes, slots, and edge quality requirements.
Laser Cutting
Metal Laser Cutting
We provide metal laser cutting based on drawings, DXF files, and technical specifications for both one-off and serial orders, including aluminum parts manufacturing , as well as steel and stainless steel parts, blanks, enclosure components, flanges, plates, and other products.
Cutting thickness
from 0.2 to 22 mm
Complex
shapes and holes
From 1 part
to serial production
Carbon and stainless
steel, aluminum
Modern
laser systems
Minimal
post-processing

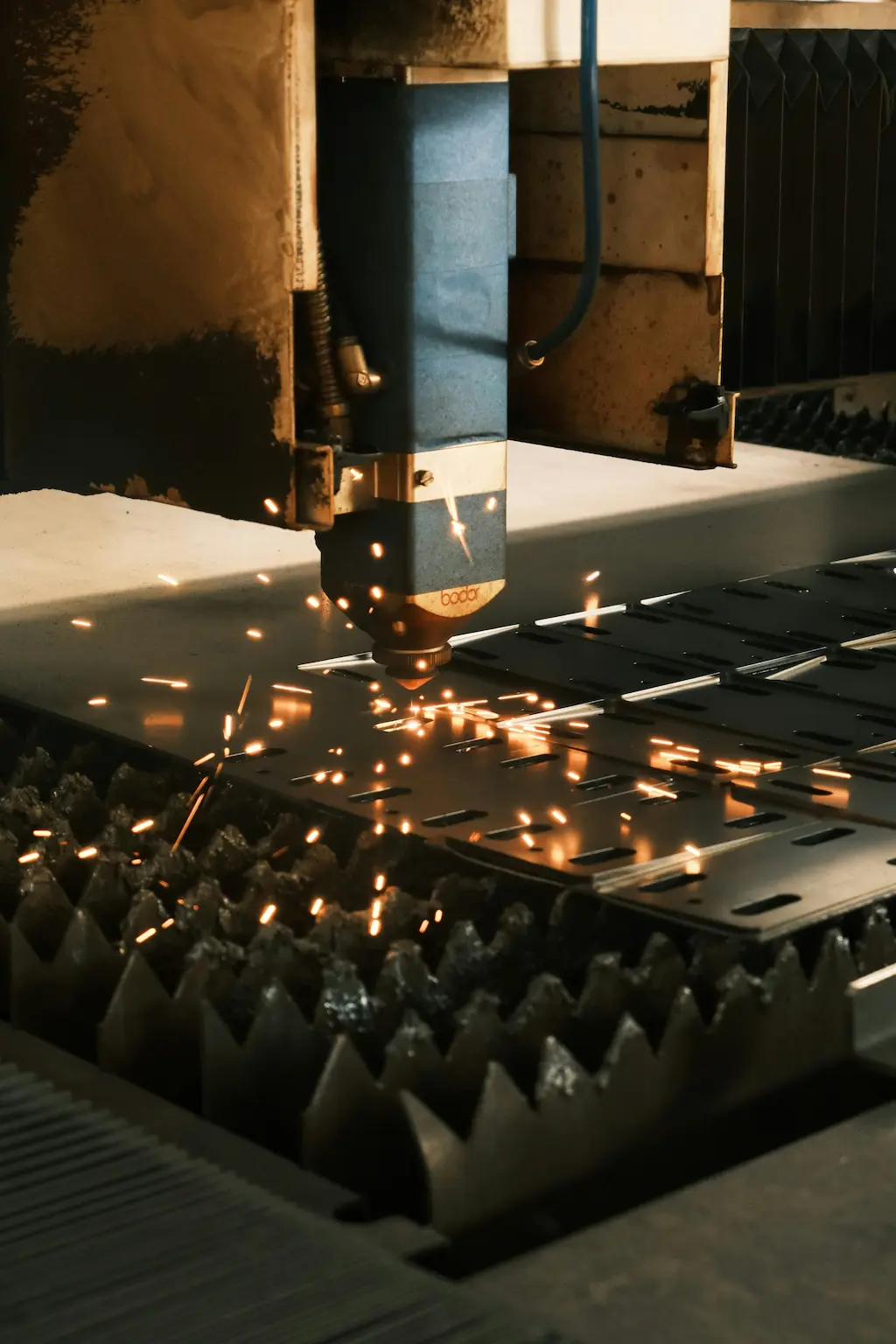

Metal Laser Cutting

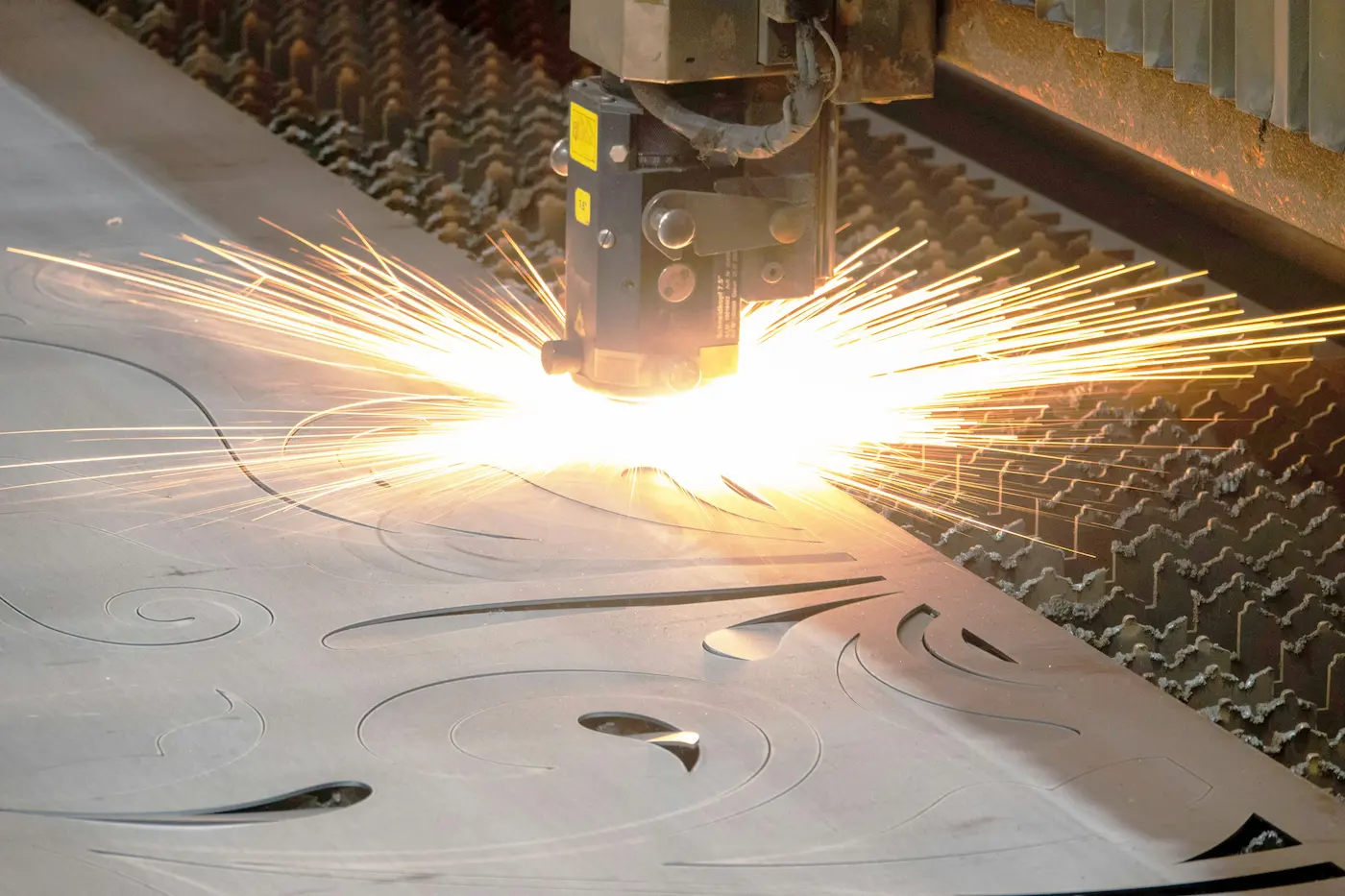

Metal laser cutting is a process in which sheet material is cut using a focused laser beam. In the cutting zone, the metal is heated and melted, while an assist gas removes the molten material from the cut. Fiber lasers are most commonly used for metal processing and work effectively with carbon steel, stainless steel, aluminum, brass, and copper.
The technology is suitable for producing flat parts with complex contours, including plates, brackets, flanges, panels, decorative elements, and blanks for bending or welding. Cut quality depends on the material, sheet thickness, assist gas, equipment power, and the requirements for the finished part.
Laser Cutting of Different Materials
Laser cutting is most commonly used for sheet metal parts made from standard structural steel, including brackets, plates, flanges, enclosure components, and blanks for bending and welding.
Typical grades:
- S235 steel
- S355 steel
- Steel 20
- Steel 45
- 09G2S steel
- Galvanized steel
Stainless steel is suitable for parts that operate in humid environments, come into contact with food products, or require increased corrosion resistance.
Typical grades:
- AISI 304
- AISI 316
- AISI 321
- AISI 430
Aluminum is used for lightweight panels, enclosure components, decorative parts, mounting plates, and blanks where reduced weight is important.
Typical grades:
- Aluminum 1050
- Aluminum 5083
- Aluminum 5754
- Aluminum 6061
- Aluminum 6082
Brass and copper are used for decorative parts, contact elements, electrical components, nameplates, and specialized sheet metal parts. These materials require separate evaluation due to their high thermal conductivity and reflectivity.
Typical materials:
- Brass
- Copper
- Copper alloys
- Decorative sheet metal blanks
Metal Laser Cutting: Tolerances and Standards
For sheet metal laser cutting, a typical tolerance is around ±0.1 mm. Actual accuracy depends on material thickness, material grade, contour length, thermal deformation, and drawing requirements.
Laser cutting kerf width is typically around 0.1–0.4 mm. It depends on sheet thickness, metal type, laser power, beam focus, and the assist gas used during cutting.
After laser cutting, the edge is generally clean and suitable for subsequent bending, welding, or painting. Thicker materials may show scale, slight taper, or burrs that can be removed with additional finishing.
ISO 9013 is used to evaluate the quality of thermal cutting of metals. The standard covers edge perpendicularity, surface roughness, contour deviation, and cut quality.
Metal Laser Cutting in Ukraine: From Drawing to Finished Part
Quote Within 24 Hours
Receive a cost estimate and lead time before production starts, without unnecessary calls or delays.
Quality Control
We check finished parts for compliance with the drawing, agreed dimensions, contour, holes, and edge quality requirements.
Finished Parts with Delivery
Receive finished laser-cut parts without coordinating production and logistics yourself — Axion Systems manages the entire process.
Metal Laser Cutting: Work Examples
Examples of parts manufactured using laser cutting.

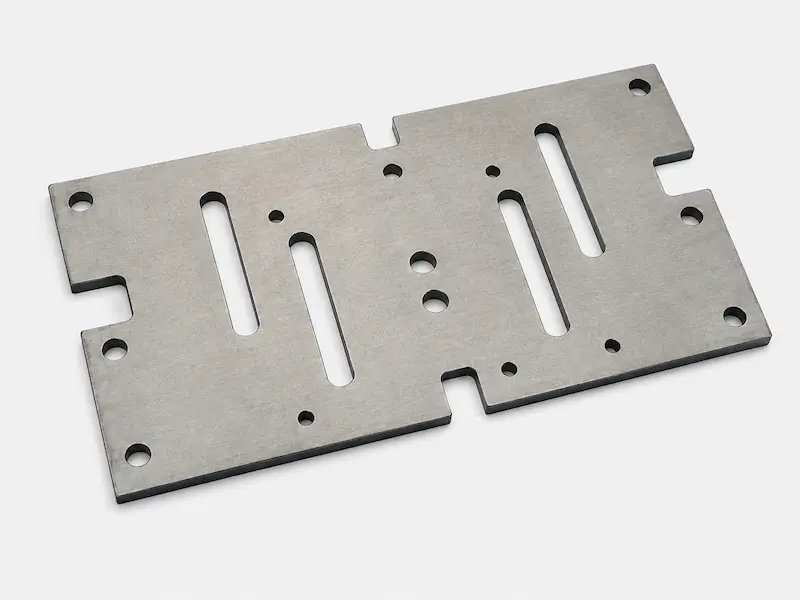

Sheet Steel Mounting Plate
Material: S235 steel. Laser cutting of the outer contour, mounting holes, elongated slots, and technological cutouts.

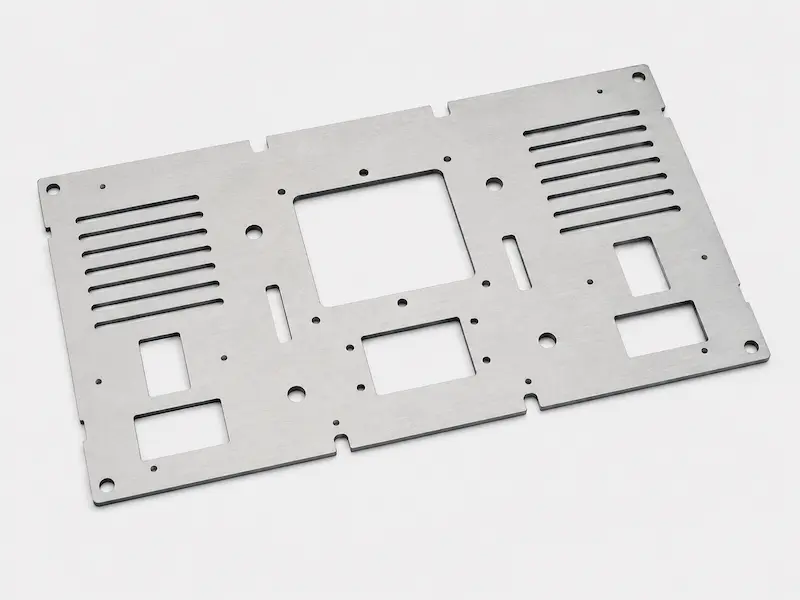

Aluminum Enclosure Panel
Material: aluminum 5754. Laser cutting of the outer contour, ventilation slots, mounting holes, and fitting areas.

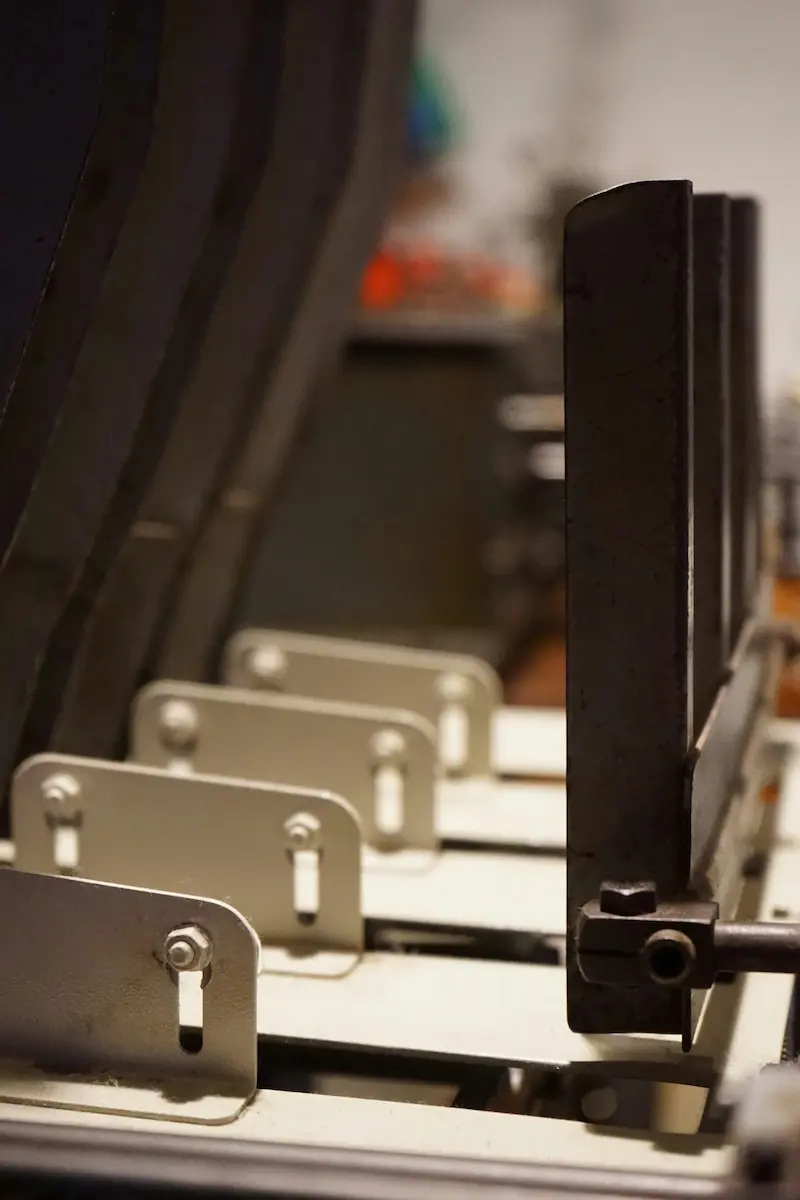

Batch-Produced Steel Brackets
Manufacturing identical sheet metal parts for serial orders with contour cutting and mounting holes.

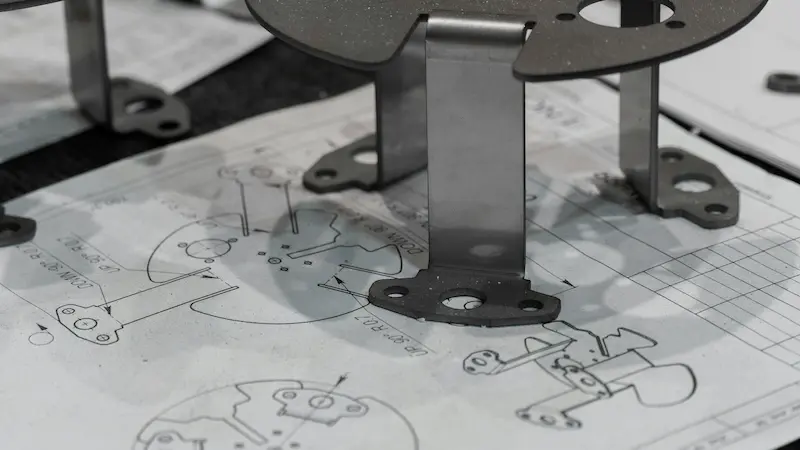

Brackets Made to Drawings
Manufacturing sheet metal parts based on drawings with subsequent bending and forming into finished brackets.
Laser Cutting: Frequently Asked Questions
Small orders are typically completed within 1–3 business days. Serial batches, thicker materials, or orders requiring additional operations may take longer.
The main factors are material type, metal thickness, total cutting length, number of parts, and batch size. Thicker material and more complex geometry generally increase manufacturing costs.
The most commonly laser-cut materials include carbon steel, stainless steel, aluminum, galvanized steel, brass, and copper. The feasibility of cutting a specific material depends on its thickness and the required edge quality.
Laser cutting provides higher accuracy, a narrower kerf, and better edge quality. Plasma cutting is typically used for thicker metal when high precision is not critical.
For most parts, an accuracy of around ±0.1 mm can be achieved. The actual tolerance depends on the material, sheet thickness, and part geometry.
Yes. Laser cutting is suitable for both one-off parts and serial production. The minimum order quantity depends on the specific manufacturer and material.
In most cases, parts are ready for further assembly, bending, or welding. If required, additional operations such as deburring, grinding, painting, and other finishing processes can be performed.
